Description

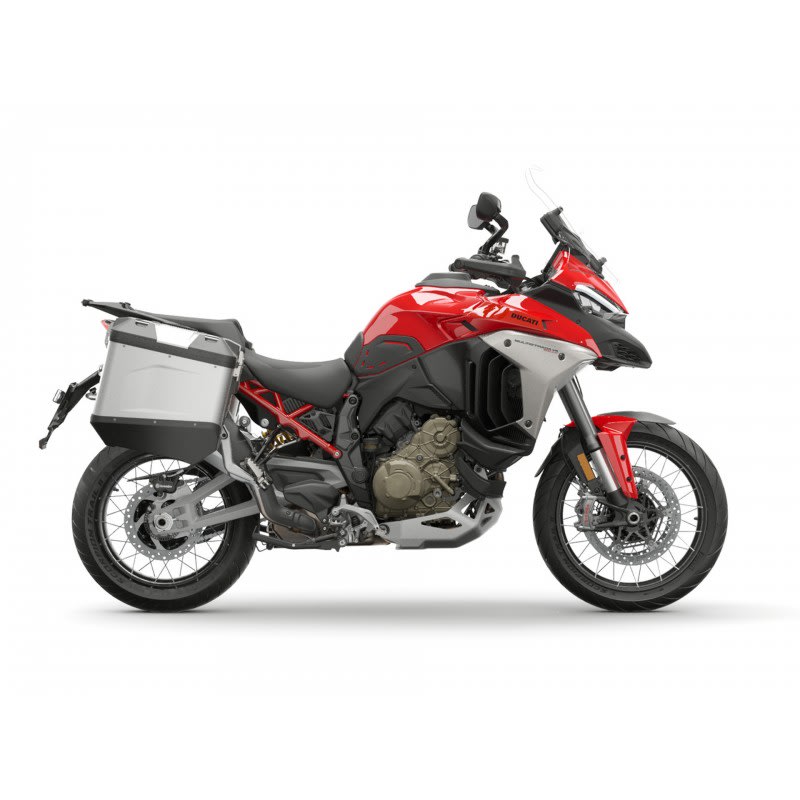

DUCATI MULTISTRADA V4 RALLY FULL 2023

COLOURS/LIVERY

• Ducati Red

RALLY FEATURES

• 30 litre fuel tank (+8 litres)
• Floating mounting system for aluminium panniers
• New air cooled phone compartment
• Centre stand
• Increased overall weight (due to fuel capacity)
• Optional panniers and top case, total 117 litres
• Increased passenger habitability
• More powerful modular rear braking system with smaller cylinder piston
• Adjustable rider seat, 870 mm or 890 mm heights
• New larger more protective windshield (by height and width)
• New air deflectors for rider and especially the passenger
• Closable air ducts for rider's legs (close for winter)
• Front 330 mm front Brembo Stylema discs and callipers
• Various optional rider seat heights (1x high, 2x low) at extra cost
• Low suspension kit as option extra cost accessory, lower by 20 mm
• Two passenger seat heights as optional accessories (high or low)
• Increased pre-load by 6 mm
• Cast offroad footpegs
• Protected banjo rear master cylinder
• Two position rear brake pedal (on or off road), no tool required
• 200 mm front and rear SkyHook Suspension (+30 mm front, +20 mm rear)
• New position sensor in front fork (more accurate)
• 19" front and 17" rear lighter spoked wheels (reduced by 3.2kg each)
• 235 mm ground clearance (+15 mm)
• Reinforced sump guard
• Pirelli SCORPION tyres homogolated use
• New minimum pre-load (for climbing on or off the bike)
• New Easy Lift (key on and open hydraulic brake, assists moving bike off centre stand)
• Revised cylinder deactivation (now whilst standing, low speed and under certain power demands)
• New exhaust pre-silencer (lower CO2, reduced heat for rider and passenger)
• New Off Road Power Mode (maximum 84kW for better control)
• ABS Completely Off Mode (when in Enduro mode)
• Revised Quickshifter (now smoother at low speed and low rpm)
• Optional accessory packs to suit your riding needs or update your Rally later

TECHNOLOGY

• Riding Modes
• Power Modes
• Offroad Riding Mode
• Ducati Traction Control (DTC)
• Ducati Wheelie Control (DWC)
• Ducati Brake Light (DBL)
• Ducati Cornering Lights (DCL)
• Vehicle Hold Control
• Ducati Skyhook Suspension EVO (DSS)
• Ducati Quick Shift (DQS)
• Adaptive Cruise Control (using front radar)
• Blind Spot Monitor (using rear radar)
• Bluetooth Handsfree (Audio + Phone)
• Cornering ABS braking
• 6.5" TFT colour display with Ducati Connect and full map navigation system
• Backlit Handlebar Switches
• Full LED Headlight with Daytime Running Light (DRL)
• All LED Lighting
• Engine Brake Control (EBC)
• Ride by Wire (RBW)

DRIVETRAIN

• Signature twin-pulse firing order with MotoGP derived counter rotating crank shaft
• V4 Grandturismo engine
• 90 degree, 4 valves per cylinder
• Counter rotating crankshaft
• Liquid cooling
• 1,158cc displacement
• Bore x stroke 83mm x 53.5mm
• Compression ratio 14.0:1
• Power 170 hp (125 kW) @ 10,500 rpm
• Torque 125 Nm @8,750 rpm
• Engine block separation along the horizontal plane
• Timing system with spring valve return system
• The valves are made from steel, with a 5 mm diameter stem and taper valve collets
• Valve opening by means of finger-type rocker arm
• Crankshaft made of hardened and tempered, and nitride high-strength alloy steel, with 3 main journals and crank pins staggered by 70°
• Firing order of the “Twin Pulse” cylinders (rapid firing of the two cylinders on the left side and then on the right side of the motorcycle)
• Idle gear to reverse crankshaft rotation
• Camshafts with dedicated profiles
• Forged steel con-rods with coupling obtained by fracture and 18 mm diameter pin
• Pistons with 2 piston rings and oil scraper ring
• Front and rear bank operated by a mixed control with chain and gears
• Rear bank deactivating system
• Chains of the Morse Tec “silent” type
• New soundproofing solutions on clutch and generator cover
• New position of the engine oil level sight glass
• Simplified oil pump (removed dedicated head recovery stage)
• Water pump positioned between the 2 banks and driven by the idle gear
• Water pump control gear made of steel
• Labyrinth gas/oil separator
• 46 mm diameter elliptical throttle bodies
• Cooling system consisting of two side radiators arranged in series with dedicated water pipes
• Stainless steel muffler
• Double catalytic converter, 4 lambda probes
• Spark plugs with Platinum-Iridium electrode NGK SILMDR9A-8GS
• Dedicated generator cover made of aluminium
• 6 speed gearbox
• Multiplate wet clutch with hydraulic control
• Clutch self servo action on drive
• Clutch slipper action on over-run
• Straight cut gears, ratio 1.8:1
• Final drive, chain, front sprocket Z16, rear Z42
• Front Ø 50 mm fully adjustable USD fork with internal stroke sensor
• Electronic compression and rebound damping
• Rear cantilever suspension with fully adjustable monoshock
• Rear electronic compression and rebound damping adjustment
• Rear electronic spring pre-load adjustment
• Aluminium double-sided swingarm
• Front suspension travel 170 mm
• Rear suspension travel 180 mm
• Front 2 x Ø 330 mm semi floating discs
• Front radially mounted Brembo M50 Stylema monobloc callipers
• Front 4 piston 2 pad callipers, radial master cylinder
• Front radial master cylinder
• Rear Brembo 2 piston floating calliper
• Rear Ø 265 mm disc
• Pirelli Scorpion Trail II tyres

BODY

• Styled for robustness, aerodynamic innovation, pursuit of maximum comfort
• Form following function design: functionality and Italian design
• Deflectors for rider and passenger protection
• Wings with closing ability for summer/winter riding
• Aluminium monocoque frame, cast side plates and rear trellis subframe
• Windscreen height adjustable in 6 different positions
• Handlebar adjustable in road and offroad positions
• Dedicated tank cover and fuel cap cover with glove compartment
• Innovative side pannier swinging system integrated in the rear side
• Pannier fixing system with hooks with insertion from the top to improve ergonomics
• Dedicated number plate holder plate
• Dual seating for rider and passenger

MEASUREMENTS

• 30 litre fuel capacity
• 260 kg kerb weight (TBC)
• Windscreen height 1460 mm-1520 mm
• Adjustable seat height, 840 mm to 860 mm
• Front/rear suspension travel 200mm / 200 mm
• Wheelbase 1,572 mm
• 24.7 degree steering rake
• Front cross spoked tubeless wheel 19" x 3"
• Front tyre 120/70 R19
• Rear cross spoked tubeless wheel 17" x 4.5"
• Rear tyre 170/60 R17

WARRANTY AND SERVICING

• 24 month unlimited kilometre warranty
• Optional Ever Red +12 or +24 extended factory warranty
• 15,000 km service intervals
• 60,000 km valve clearance check interval and service
