Description

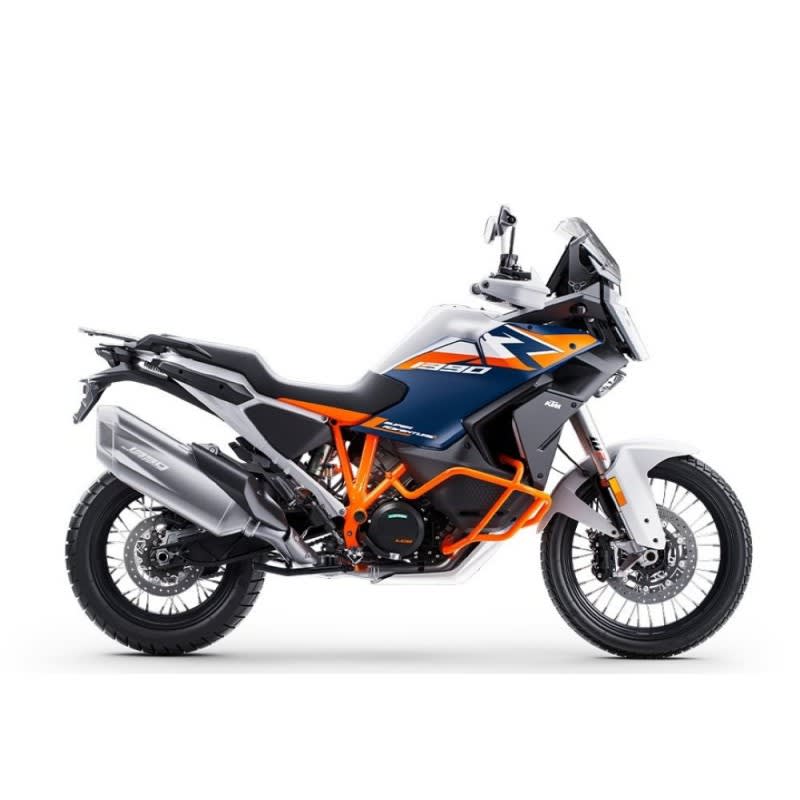

KTM 1390 Super Adventure R 2026
Not only has it proven itself with a stable of hard-hitting predecessors, but the KTM 1390 SUPER ADVENTURE R nameplate remains the ultimate READY TO RACE v-twin-powered travel machine ever made.
TECHNICAL FEATURES
Engine:
- Design: 2-cylinder, 4-stroke, V 75°
- Displacement: 1350 cm³
- Power: 173 PS
- Torque: 145 Nm
- Transmission: 6-speed
- CO2 emissions: 139.5 g/km
- Cooling: Liquid cooled with water/oil heat exchanger
- Engine cylinder: Twin cylinder
- EMS: Keihin EMS with RBW, twin ignition
- Engine oil: Motorex, SAE 10W-50
- Engine stroke: 4-Stroke
Chassis:
- Front brake disc diameter: 320 mm
- Rear brake disc diameter: 267 mm
- Front brake: 2 x Brembo 4-piston, radially mounted caliper
- Rear brake: Brembo 2-piston, fixed caliper
- Chain: 525 X-Ring
- Frame design: Chromium-Molybdenum-Steel trellis frame, powder coated
- Silencer material: Stainless steel
- Steering head angle: 64.8 °
- Rear subframe design: Aluminium, powder-coated
- Trail: 112 mm
- Wheelbase: 1577 mm
Suspension:
- Front suspension: WP XPLOR-USD, Ø 48 mm
- Rear suspension: WP XPLOR shock absorber with PDS
- Suspension travel front: 240 mm
- Suspension travel rear: 220 mm
- Front suspension adjustment: Compression (high and low speed), rebound
Dimensions:
- Seat height: 880 mm
- Wheelbase: 1577 ± 15 mm
- Tank capacity (approx.): 23 l
- Ground clearance: 242 mm
- Weight (without fuel): 231 kg
- Weight fully fueled: 248 kg
- Wheelbase tolerance: 15 mm
- Wheels: 2.5 x 21"; 4.25 x 18"
- Wheels: Spoked wheels with aluminium rims
