Description

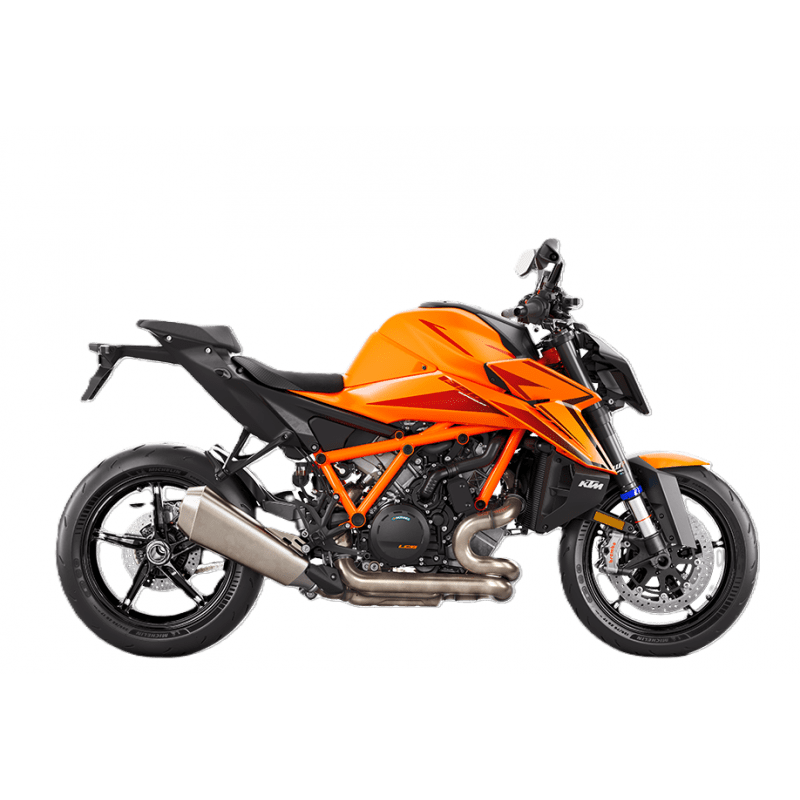

KTM 1390 Super Duke R Evo 2026

TECHNICAL FEATURES

Engine:

• Design: 2-cylinder, 4-stroke, V 75°
• Displacement: 1350 cm³
• Power: 190 PS
• Torque: 145 Nm
• Transmission: 6-speed
• CO2 emissions: 139.5 g/km
• Cooling: Liquid cooled with water/oil heat exchanger
• Engine cylinder: Twin cylinder
• EMS: Keihin EMS with RBW and cruise control, double ignition
• Engine oil: Motorex, SAE 10W-50
• Engine stroke: 4-Stroke
• Silencer: Stainless steel primary and secondary silencer with two catalytic converters

Chassis:

• Front brake disc diameter: 320 mm
• Rear brake disc diameter: 240 mm
• Front brake: 2 x Brembo Stylema Monobloc four piston, radially mounted caliper
• Rear brake: Brembo 2-piston, fixed caliper
• Chain: 525 X-Ring
• Frame design: Chromium-Molybdenum-Steel trellis frame, powder coated
• Silencer material: Stainless steel
• Steering head angle: 65.3 °
• Rear subframe design: Cast aluminium / Composite
• Trail: 101 mm
• Wheelbase: 1491 mm

Suspension:

• Front suspension: WP APEX-USD Ø 48 mm, semi-active (Gen 3)
• Rear suspension: WP APEX-linkage shock, semi-active (Gen 3)
• Suspension travel front: 125 mm
• Suspension travel rear: 140 mm
• Front suspension adjustment: Semi-active, electronic preload

Dimensions:

• Seat height:834 mm
• Wheelbase: 1491 ± 15 mm
• Tank capacity (approx.): 17.5 l
• Ground clearance: 149 mm
• Weight (without fuel): 200 kg
• Weight fully fueled: 212 kg
• Wheelbase tolerance: 15 mm
• Wheels: 3.50 x 17"; 6 x 17"
• Wheels: Cast aluminium wheels
