Description

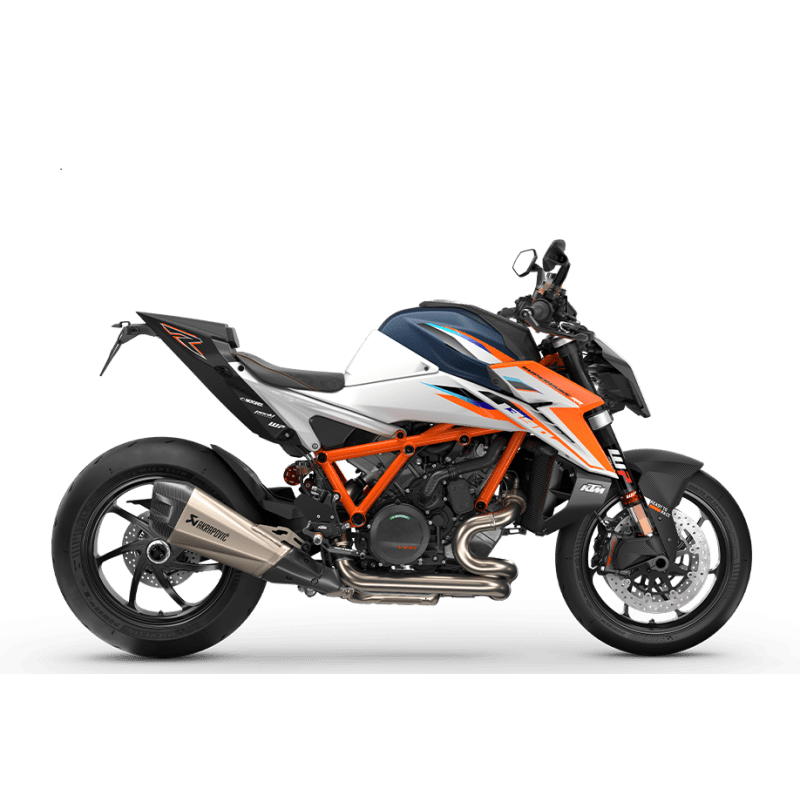

KTM 1390 SUPER DUKE RR 2026

R LIVERY

TECHNICAL FEATURES

Engine

• Design: 2-cylinder, 4-stroke, V 75°
• Displacement: 1350 cm³
• Power: 190 PS
• Torque: 145 Nm
• Transmission: 6-speed
• CO2 emissions: 5.9 g/km
• Cooling: Liquid cooled with water/oil heat exchanger
• Engine cylinder: Single cylinder
• EMS: Keihin EMS with RBW, twin ignition
• Engine oil: Motorex, SAE 10W-50
• Engine stroke: 4-Stroke
• Silencer: Stainless steel primary and Titanium secondary silencer with two catalytic converters

Chassis

• Brake disc diameters (front/rear): 320 / 240 mm
• Front brake disc diameter: 320 mm
• Rear brake disc diameter: 240 mm
• Front brake: 2 x Brembo HyPure Sport Monobloc four piston, radially mounted caliper, brake disc
• Rear brake: Brembo twin-piston fixed calliper, brake disc
• Chain: 525 X-Ring
• Frame design: Chromium-Molybdenum-Steel trellis frame, powder coated
• Steering head angle: 65.3 °
• Rear subframe design: Cast aluminium/Carbon
• Trail: 101 mm
• Wheelbase: 1.491 mm

Suspension

• Front suspension: WP PRO 7548 - Closed Cartridge front fork
• Rear suspension: WP PRO 8750 - shock
• Suspension travel (front): 130 mm
• Suspension travel (rear): 140 mm
• Front suspension adjustment: Compression, rebound and preload adjustment
• Rear suspension setting: Compression (high and low speed), rebound, hydraulic preload

Dimensions

• Seat height: 837/847 mm
• Wheelbase: 1.491 ± 15 mm
• Tank capacity (approx.): 17.5 l
• Weight (without fuel): 189 kg
• Wheelbase tolerance: 15 mm
• Wheel size: 3.5 x 17"; 6 x 17"
• Wheels: Forged
