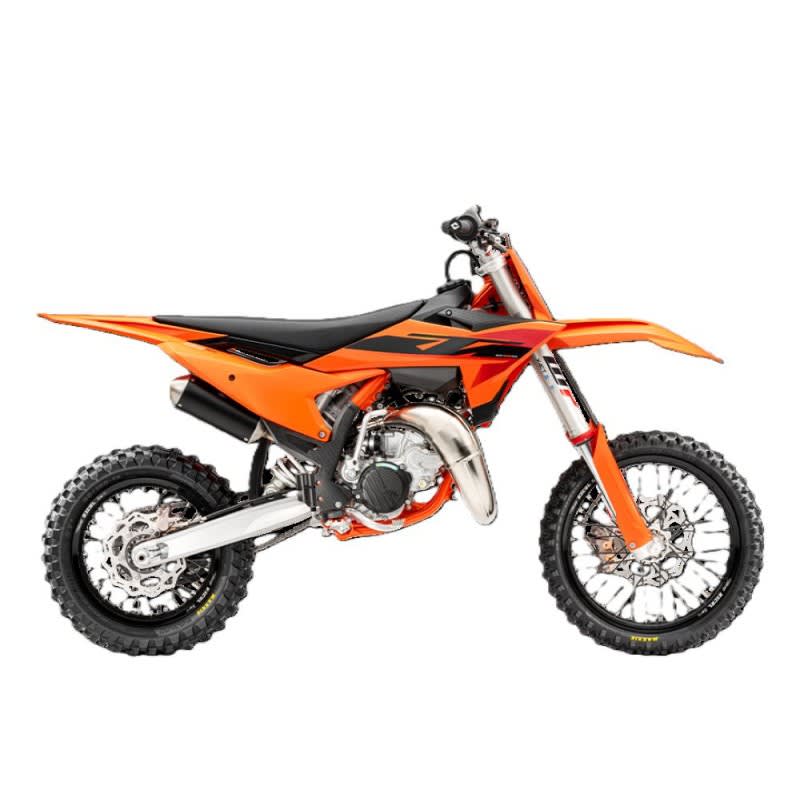

KTM 85 SX 19/16 'BIG WHEEL' 2026

Developed on track and at an international level, the KTM 85 SX 19/16 boasts significantly enhanced handling, searing power delivery and proven READY TO RACE DNA through its components and pedigree.

TECHNICAL FEATURES

Engine:

• Design: 1-cylinder, 2-stroke engine
• Displacement: 84.9 cm³
• Transmission: 6-speed
• EMS: Keihin PWK 28
• Engine oil: Motorex Formula 4T 15W/50
• Clutch primary drive teeth: 64
• Primary drive: 20:64
• Clutch: Wet, multi-disc clutch, Formula hydraulics
• Engine cylinder: Single cylinder
• Engine stroke: 2-Stroke

Chassis:

• Frame design: Central-tube frame with double-cradle
• Front brake: Disc brake
• Rear brake: Disc brake
• Rear subframe design: Aluminium / Polyamide Glass Fiber
• Chain: 428, Non-sealed

Suspension:

• Front suspension: XACT 43 WP Upside-Down fork, Ø 43 mm
• Rear suspension: XACT WP PDS mono shock
• Suspension travel front: 278 mm
• Suspension travel rear: 289 mm
• Front suspension type: WP XACT
• Front suspension adjustment: Compression and rebound adjustable
• Rear suspension addition: Preload adjuster

Dimensions:

• Seat height: 871 mm
• Ground clearance: 333 mm
• Tank capacity (approx.): 5.4 l
• Weight (without fuel): 69 kg
